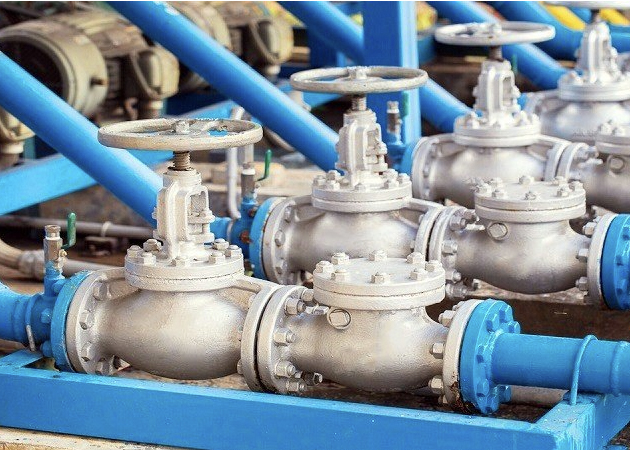

Globe Valves – Reliable Flow Regulation Solutions
Fluent Valves offers high-precision globe valves designed for accurate flow control and leak-tight operation.
Built to handle high pressures, temperatures, and challenging industrial environments.
Material:
Cast Carbon Steel (ASTM A216 Gr. WCB) standard. Also available in LCC, LCB, CF3, CF8, CF3M, CF8M, WC9, WC6, CN7M, LTB-2, Hastelloy, Monel upon request.
Design Standard:
Manufactured in compliance with BS 1873 / BS 5352 for design and body. Face-to-Face dimensions as per ANSI B16.10 and DIN ND-16 / ND-40 standards.
Testing & Inspection:
Performed as per API 598 for seat leakage and shell integrity.
End Connections:
Flanged ends per ANSI B16.5 (and 26″+ per ANSI B16.47 Series A / B) or DIN 2533 / 2543 / 2535 / 2545. Socket weld / threaded per ANSI B16.11 / ANSI B1.20.1. Butt weld ends per ANSI B16.25.
Shell & Wall Thickness:
Guided by ANSI B16.34 / ANSI B16.25 rules for body and wall design.
Types / Variants:
- Straight / In-line globe valves
- Angle type globe valves
- ND-40 globe valves
- Flanged, screwed / socket ends
Pressure Classes & Sizes:
Ratings: #150, #300, #600, #900, #1500, #2500 (based on material & design). Typical sizes from ½″ up to 48″ (DN15 to DN1200) or as per project requirements.
Description
Globe valves from Fluent Valves are specially engineered for fine flow regulation and throttling applications. Unlike gate valves, globe valves allow partial opening and precise modulation of fluid flow, making them suitable for scenarios where flow control, not just isolation, is essential.
Our design uses an outside-screw & yoke (OS&Y) rising spindle with a backseat arrangement, allowing safe maintenance and sealing at the bonnet when the valve is open. The working parts are renewable and made from SS 410 (13% Cr) by default, with options for more corrosion-resistant alloys for harsh service.
Variants include straight-through and angle-type bodies. In angle-type, the fluid path changes direction within the body, which can reduce piping and improve layout flexibility. ND-40 variants allow special mid-range face-to-face dimensions for certain applications.
Globe valves can be actuated manually (handwheel), by gear mechanism (for higher torque), electric actuation, or pneumatic actuation. For applications where torque 350 N·m, gear operation is recommended. Additional accessories include limit switches, position indicators, locking arrangements, and stellited surfaces for enhanced wear resistance.
Our globe valves are suitable for a wide variety of media-liquids, gases, steam, slurries-and are built to handle severe services including high temperature, corrosive environments, and frequent throttling cycles.
Features
- Precise Throttling / Regulation - designed for accurate partial flow control.
- Reliable Sealing - tight shut-off when fully closed, minimal leakage.
- Robust Construction - supports high pressure & temperature applications.
- Multiple Body Styles - in-line and angle designs for application flexibility.
- Modular & Service-Friendly - renewable internals, backseat for safe bonnet service.
- Versatile Actuation Options - manual, gear, electric, pneumatic.
Applications
Fluent Valves’ globe valves are ideal in:
- Chemical & Petrochemical plants (regulating flow of reactive or corrosive fluids)
- Oil & Gas (process control, pressure regulation)
- Power Plants (steam, feedwater flow control)
- HVAC / Building Services (regulating water, steam)
- Water Treatment & Distribution Systems
- Cryogenic & Gas Processing
- High-precision flow control in industrial systems
Globe Valve Dimensions
Fluent Valves provides a comprehensive range of globe valve sizes and dimensions engineered to meet the requirements of various industrial applications. Below are the standard dimensions for our globe valves, ensuring precise flow control, dependable performance, and seamless integration within different piping systems.
| Standard | Purpose |
|---|---|
| BS 1873 / BS 5352 | Design and construction of steel globe valves |
| API 598 | Inspection & testing protocols |
| ANSI B16.10 / DIN ND-16 / ND-40 | Face-to-face / end-to-end dimensions |
| ANSI B16.5 / B16.47 / DIN standards | Flanged end dimensions & ratings |
| ANSI B16.11 / B1.20.1 | Socket weld and threaded components |
| ANSI B16.25 | Butt weld end preparations |
| ANSI B16.34 / B16.25 | Body wall / shell thickness design rules |
| IBR, NACE MR0175 | For boiler feed, sour service, or high-heat applications |
Frequently Asked Questions
Here are some common questions about our globe valves:
Globe valves are designed for flow regulation and throttling; gate valves are optimized for isolation (on/off). Globe valves provide better control but usually incur higher pressure drop.
Yes - by selecting appropriate materials (stainless, alloy, duplex) and protective coatings, they can be used in severe, high-temperature, or corrosive environments.
Manual (handwheel), gear-operated (for high torque), electric actuator, pneumatic actuator. Accessories like limit switches, position indicators, and locking arrangements are available.
In-line (straight-through), angle-type (body shape changes direction), ND-40 variants with special dimensions. Each has advantages in specific piping layouts.
Classes #150, #300, #600, #900, #1500, #2500. Sizes typically from ½″ to 48″ or more, depending on configuration and material.
Designs adhere to BS 1873 / 5352, dimensions per ANSI B16.10 / DIN ND, end connections per ANSI and DIN norms, and tested per API 598. Optional compliance with IBR and NACE MR0175.
